X-ray Baggage Scanner

Advanced security screening solution with high-resolution imaging and reliable performance

Product Highlights

ARM CPU

Advanced processing power for efficient image analysis and system operation

Digital Signal Processing

Enhanced image quality through sophisticated digital processing algorithms

10,000 Hours Continuous Operation

Designed for reliability and extended operation in demanding environments

Energy Saving Design

Efficient power consumption without compromising on performance

High Penetration

Capable of penetrating typical 12mm steel (guaranteed 10mm)

High Quality Images

Crisp, clear imaging for accurate threat detection and identification

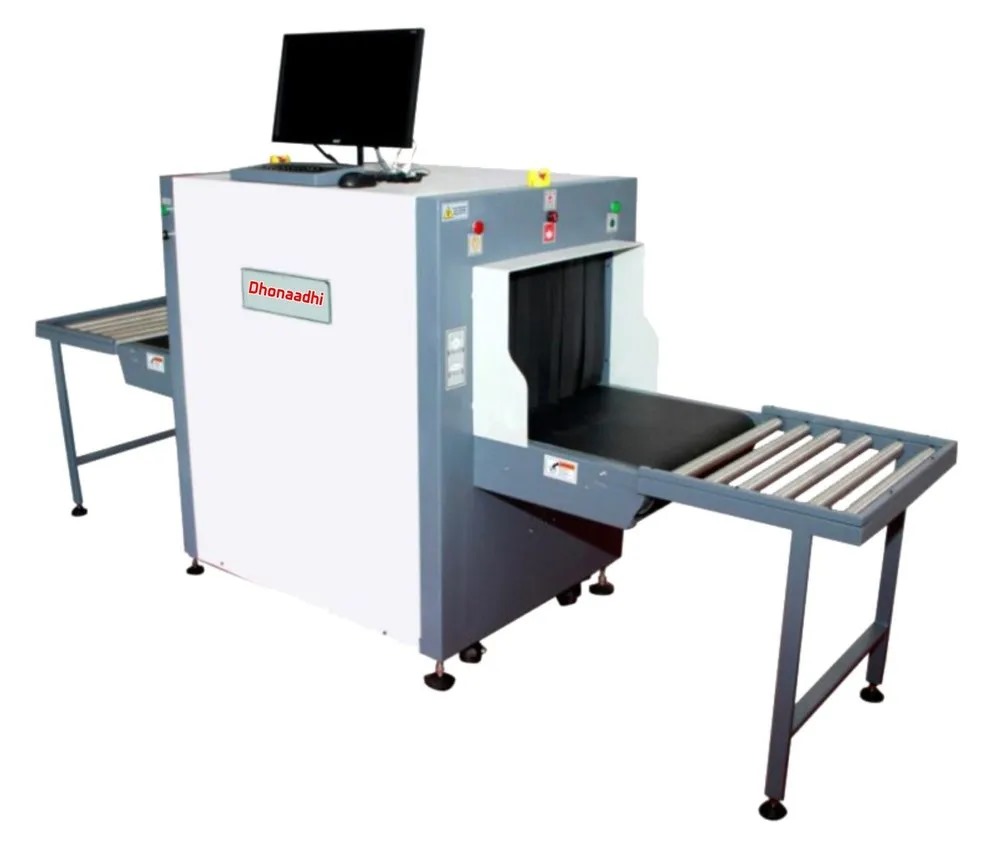

X-ray Baggage Scanner 5030 LV

X-ray Baggage Scanner Model 5030 LV - Advanced security screening technology

Technical Specifications

Physical Dimensions

Specification Value
Unit Weight 450 kg
Unit Size (L×W×H) 1350 × 800 × 1160 mm
Tunnel Size 500 × 300 mm
Conveyor Speed 0.2 m/s
Conveyor Height 700 mm
Conveyor Max Load 100 kg

Technical Specifications

Specification Value
Penetration Typical 12mm steel, guarantee 10mm steel
Wire Resolution Typical AWG38, guarantee AWG36
X-Ray Leakage Less than 0.1mR/hr
Power Consumption Max 0.5 KW
S/N Ratio < 60dB
Film Safety Guarantee ASA/ISO1600 Film

System Features

Hardware Components

  • X-Ray Generator: 100 KV, oil cooling, from bottom to top
  • Computer: CPU Cortex A9
  • Monitor: Dell or Acer, 17° LED screen, resolution 1280×1024 pixels
  • Keyboard: Made by Dhonaadhi Hitec Innovations
  • Operation System: Windows XP

Software Features

  • Image Enhancement: Color/BW, negative, high/low penetration, stripping, general enhancement, and pseudo color etc.
  • Image Recall: 30 images recallable, retrieval
  • Image Archive: Up to 500,000 images stored automatically
  • Multiple export formats: JPG, BMP and other general formats
  • USB transfer capability
