Smart Hotel Door Locks - Dhonaadhi Hitec Innovations

Product Features

Uses Philips Mifare cards with 13.5 MHz frequency, meeting ISO 1443A and B protocols for maximum security and compatibility.

Only 12μA static consumption and 300mA dynamic consumption, powered by 4 AA alkaline batteries for long-lasting operation.

RFID card access, manual key override, and multiple card types for different access levels and scenarios.

JSW 304 SS cover plates reinforced with 1.8mm thick steel plate for additional security and durability.

SNS alerts and online software for live updates, backups, and service monitoring with traffic control features.

5-pin computerized tumbler type key cylinder for manual opening with 2 keys provided for emergency access.

Technical Specifications

Specification	Description
Applicable Card	Philips Mifare cards of 13.5 MHz frequency Meeting ISO 1443A and B Protocol
RFID Reader	Integrated with microcontroller with built-in RTC and flash memory, buzzer and low battery indicator
Antenna Size	25mm X 35mm
PCB	Flex type SMT Mounted 60mm X 37mm
Static Consumption	12μA
Dynamic Consumption	300mA
Humidity Range	20 to 80%
Key Cylinder	5 pin computerized Tumbler type for Manual opening. 2 keys provided
Operating Voltage	3-6 Vdc, Powered by 4 AA Alkaline batteries
Weight	2.75 Kg nett

Card Access System

Generated by the system with no need to worry about loss of cards. Enhanced security with traceable access records.

Can open all rooms in the hotel. Convenient for management and emergency situations.

Can open all doors on a specific floor. Convenient for housekeeping staff who don't need to carry keys for each room.

Can open specific room for specific period. Provides security and control with limited access.

Any card can be used as access card. Can make lost cards invalid without needing to change the lock.

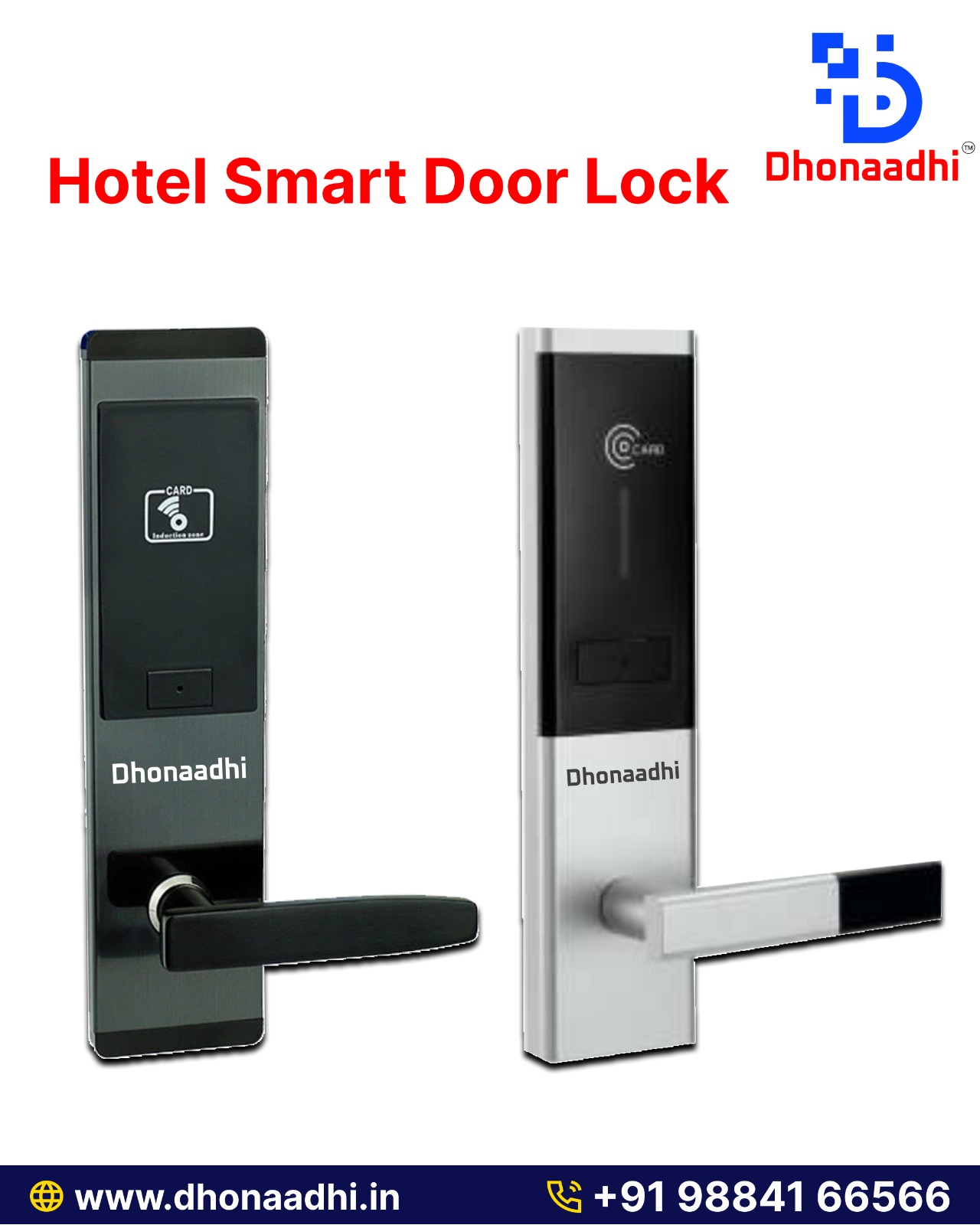

Smart Hotel Door Lock Systems
