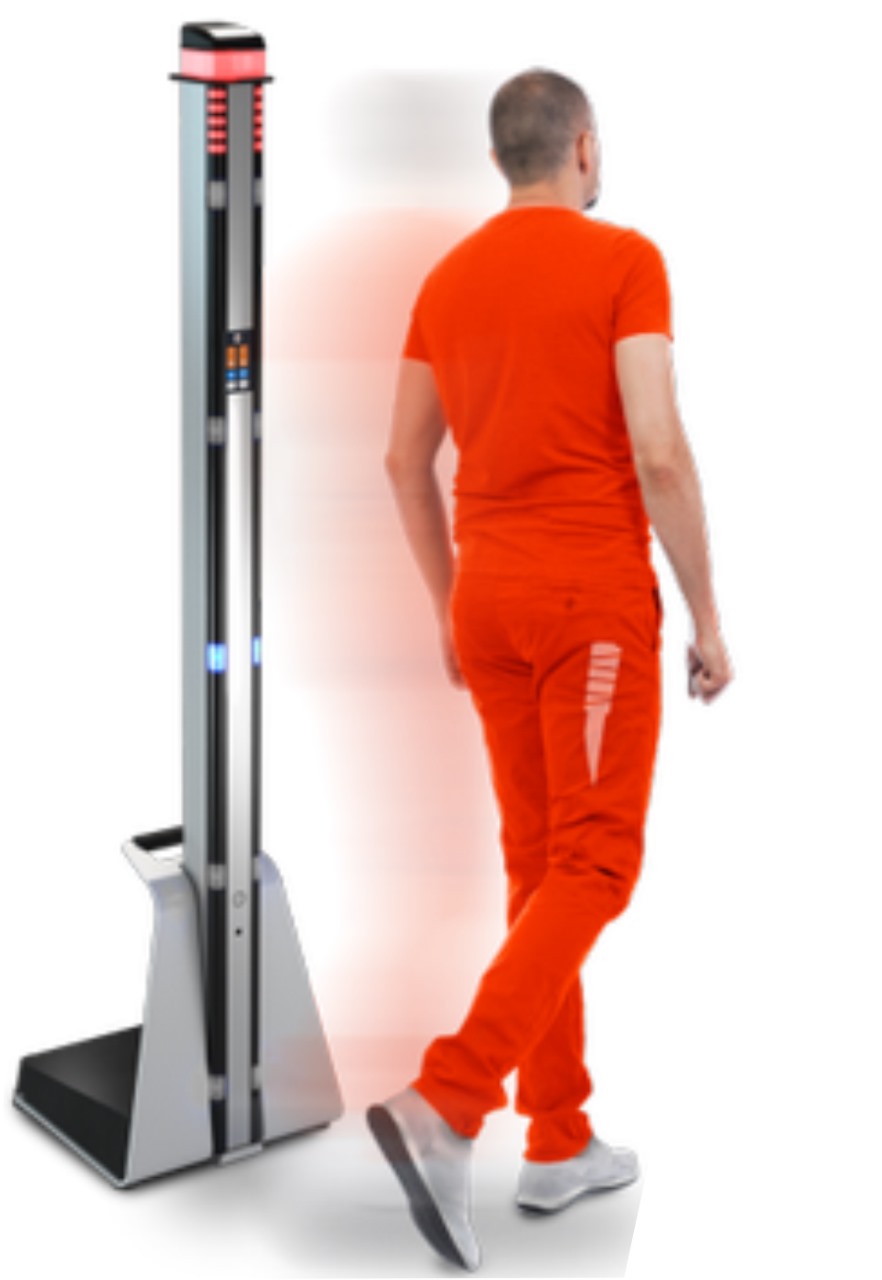

Single Pole Detection Systems

Advanced security screening technology for correctional facilities, government buildings, and high-security areas

Key Features

Enhanced Sensitivity

Detect even the smallest metallic objects with 2x sensitivity in the biggest concealment areas, from razors to tattoo needles.

Reduced False Alarms

Advanced technology provides 50% fewer nuisance alarms with immunity to nearby metal doors and stationary objects.

Full Body Screening

Complete scan of the entire body in a single walk-by, screening up to 40 subjects per minute with high accuracy.

Versatile Deployment

Functions in both vertical and horizontal positions to screen individuals and their belongings effectively.

Quick Setup

Easy to deploy with setup and screening beginning in just 10 seconds, requiring minimal training.

Cell Phone Detection

Detect cell phones whether they are on or off, and anywhere on the person or internalized.

Technical Specifications

Power Supply

Battery: 12V DC 4.5Ah sealed lead acid
Charger: 100/240 V AC battery charger
Charge Time: 4 hours
Battery Run Time: 10–16 hours on full charge

Environmental

Temperature Range: -10°C to +50°C
Relative Humidity: 0–95% NC

Physical

Unit Weight: 9 kg (19.8 lbs)
Base Weight: 9 kg (19.8 lbs)
Unit Dimensions: 5.3″ x 3.4″ x 72.6″
Base Dimensions: 13.4″ x 13.4″ x 14.2″

Operation

Controls: On/Off push button
Sensitivity control for red alert
Audible alarm on/off control
Wall Mount Profile: 3.6″
