Advanced Security Technology

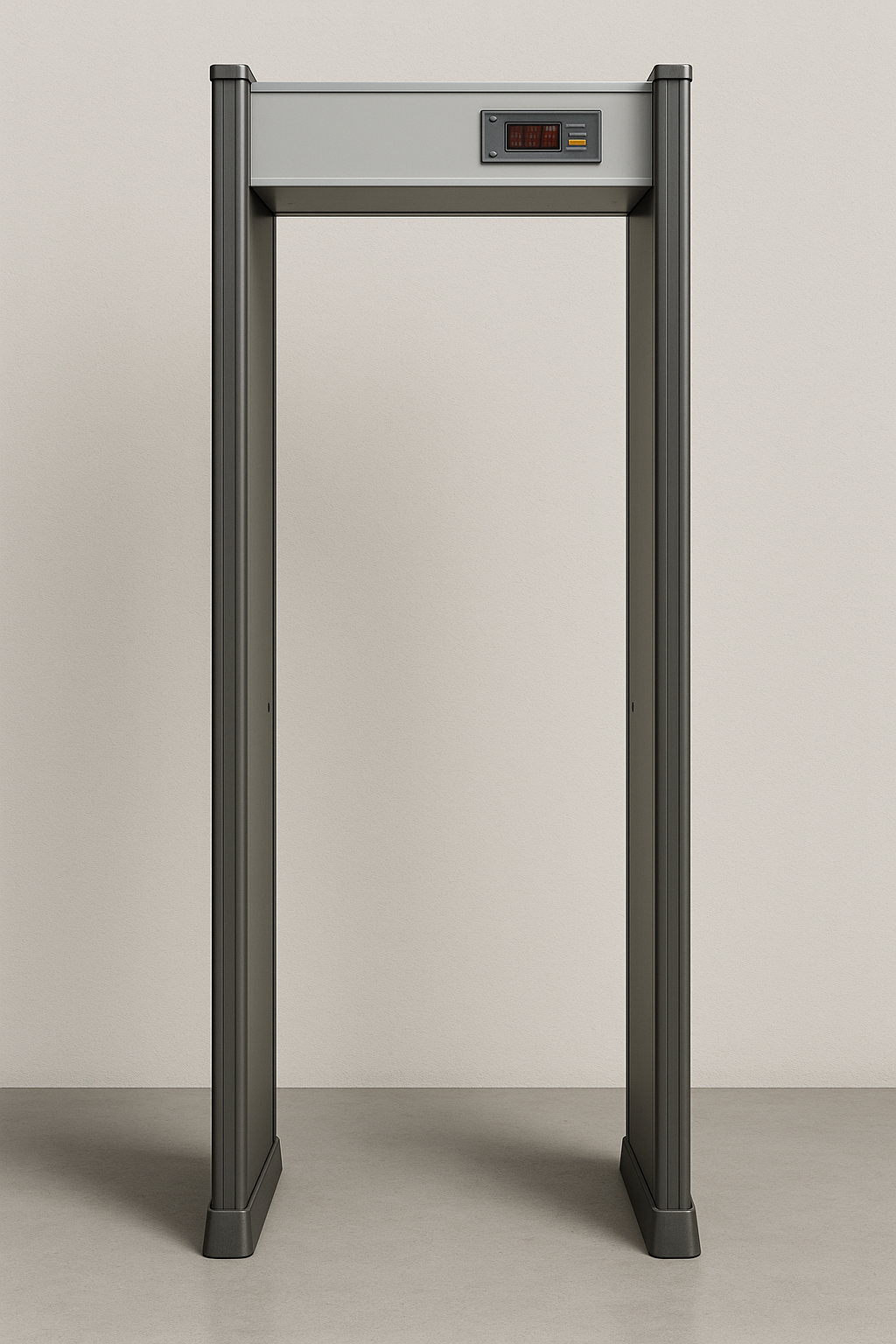

9 Zone Door Frame Metal Detector

Precision detection for maximum security at airports, government facilities, and corporate buildings

Model DHI-9Z Pro

Next Generation Detection Technology

Our advanced 9-zone detection system provides pinpoint accuracy for identifying metallic objects, ensuring security without compromising on throughput efficiency.

Pinpoint Accuracy

Precisely identifies metal location across 9 independent detection zones

Adjustable Sensitivity

Customizable detection levels (0-400) for different security requirements

Safe Operation

Harmless to pacemakers, pregnant women, and electronic devices

Automatic Counting

Built-in passenger and alarm counters for statistical analysis

Technical Specifications

Physical Dimensions

Height: 2220mm ±10%
Width: 850mm ±10%
Depth: 460mm ±10%
Net Weight: 50 kg
Passage Width: 700mm

Performance Parameters

Detection Zones	9 Independent Zones
Sensitivity Levels	0-400 Adjustable
Alarm Indicators	LED & Sound Signals
Throughput	60+ people/minute
Detection Accuracy	>99%

Environmental Specifications

Power Supply: AC 90V-240V, 50/60Hz
Operating Temperature: -10°C to 50°C
Humidity: 95% Non-condensing
IP Rating: IP42

Ideal For Various Applications

Airports

High-throughput security screening for passengers and staff

Government Buildings

Secure entry points for sensitive facilities and offices

Corporate Offices

Protect your workplace from unauthorized metallic objects

Educational Institutions

Ensure campus safety with effective security screening
