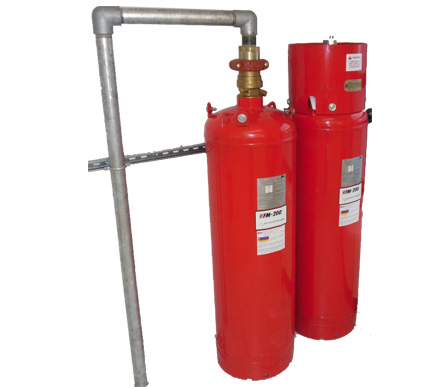

FM 200 Fire Suppression

  • Nontoxic Chemical Agents.
  • Telematics Connectivity.
  • Third-party Tested And Approved.
  • Circuit Monitor Panel Ensures System Readiness.
  • Effective Use Of Limited Space.
  • Power Protection.
  • Easy Inspection.
  • System Rating : Fire Protection Equipment rating no.: Ga-151
  • Cabinet : SPCC t=1.6 mm
  • Color : Munsell value 5Y7/1
  • Dimensions (mm) : 440*2100*380
  • Power Supply : 100 VAC/200 VAC
  • Emergency power : 24 VDC, 4AH
  • Service Temperature range : 0C to 40C
  • Storage Cylinder : 68 Kg or 42 L
  • Gross Weight : Approx. 87 Kg
  • Per unit extinguishing capacity : Approx. 100 metre cube(*differs according to installation conditions)
