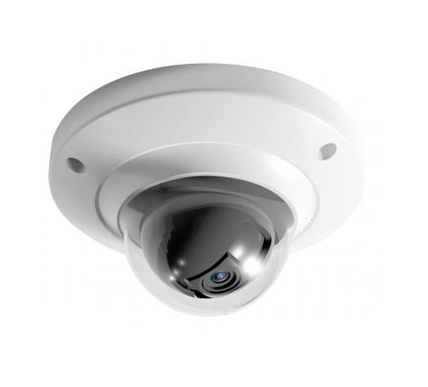

IPC HD2100P

  • 1/3” 1.3Megapixel Progressive Scan Aptina
  • H.264 & MJPEG Dual-stream
  • Max 15fps@1.3M(1280×960)&25/30fps@720P(1280×720)
  • Day/Night, 2DNR, AWB, AGC, BLC
  • Multiple Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm Fixed Lens (2.8mm,6mm,8mm Optional)
  • DC12V, PoE
Download Brochure
ModelDH-IPC-HD2100PDH-IPC-HD2100N
Camera
Image Sensor1/3” 1.3Megapixel Aptina CMOS
Effective Pixels1280(H)x960(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3~1/10000Auto/Manual 1/3~1/10000
Min. IlluminationColor: 0. 1LUX/F1.4
S/N Ratio>50dB
Camera Features
Day/NightAuto(Electronic) / Color / B/W
Backlight CompensationBLC
White BalanceAuto
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Lens
Focal Length3.6mm (2.8mm,6mm,8mm optional)
Max ApertureF1.8(F.20/F1.8/F1.6)
Angle of ViewH: 70°(114°/46°/35°)
Mount TypeBoard-in Type
Video
CompressionH.264 / MJPEG
Resolution1.3M(1280×960) / 720P(1280×720)/ D1(704×576) / CIF(352×288)/1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240) /
Frame RateMain Stream1.3M(1~15fps)/720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Ver. 2.0
Max. User Access10 Users
SmartphoneiPhone, iPad, Android, Windows Phone
General
Power SupplyDC12V, PoE(802.3af)
Power Consumption<1.5W
Working Environment-10°C~+60°C, 10%~90%
DimensionsΦ110×54mm
Weight0.25kg
