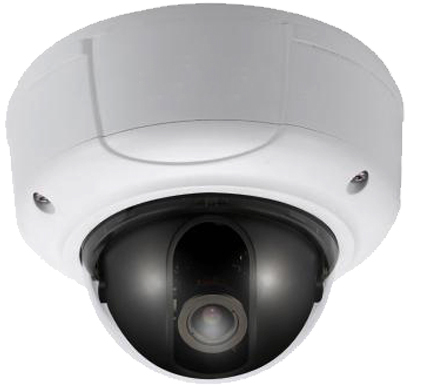

CA DB581B

  • 1/3" SONY Super HAD CCD II & Effio-P DSP
  • High Resolution Of 700TVL(Color), 750TVL(B/W)
  • WDR, Day/Night(ICR), DNR (2D&3D), Auto Iris, AWB, AGC,BLC, MD, DZOOM, DIS,
  • Privacy Masking, Picture Adjustment
  • 4.0-9.0mm Varifocal Lens (2.8~12mm Optional)
  • OSD, IP66, IK10, DC12V (-A Model: DC12V/AC24V Dual Power Supply)
Download Brochure
ModelDH-CA-DB581BP(-A)DH-CA-DB581BN(-A)
Camera
Image Sensor1/3" Super HAD CCD II
Effective Pixels976(H) x582(V), 570K pixels976(H) x 494(V), 480K pixels
Horizontal ResolutionColor: 700TVL, B/W: 750TVL
Electronic Shutter1/50s~1/100,000s, 10s~1/100,000s@Slow shutter, 512x1/60s~1/100,000, 8s~1/100,000s@Slow shutter, 512x
SynchronizationInternal / External
Min. IlluminationColor: 0.001Lux@F1.2, 0.0001Lux@F1.2(Slow shutter, 512x)B/W: 0.0001Lux@F1.2, 0.00001Lux@F1.2(Slow shutter, 512x)
S/N Ratio> 60dB
Video Output1Vp-p Composite Output (75Ω/BNC)
Camera Features
OSDEnglish, Chinese
Day/NightAuto (ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (75dB)
White BalanceAuto Trace WB1 / Auto Trace WB2 / Manual / Auto
Gain ControlAuto / Manual
Noise Reduction2D / 3D
Privacy MaskingUp to 4 areas
Digital ZoomMagnitude / Horizontal / Vertical
Picture AdjustmentMirror / Brightness / Contrast / Sharpness / Hue / Gain / Slow Shutter
Lens
Focal Length4.0~9.0mm (2.8~12mm optional)
Focus ControlManual
Lens TypeManual / Auto iris
Mount TypeΦ14
General
Power SupplyDC12V±10% (-A model: DC12V/AC24V dual power supply)
Power ConsumptionMax 3.5W
Working Environment-30°C~+60°C / 20%~80%RH
Protection LevelIK10 & IP66
DimensionsΦ160 mm×118.5mm
Weight980g (-A: 1000g)
