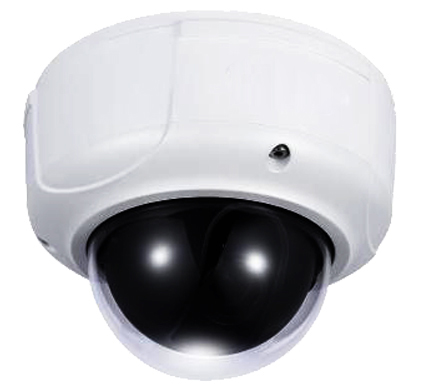

CA DB480B

  • 1/3" SONY EXview HAD CCD II & Effio-E DSP
  • High Resolution Of 700TVL(Color)
  • DWDR, Day/Night, 2DNR, Auto Iris, AWB, AGC, BLC, MD, Privacy Masking, Picture Adjustment
  • 4~9mm Varifocal Lens (2.8~12mm Optional)
  • OSD, IK10, IP66, DC12V(-A Model: DC12V/AC24V Dual Power Supply)
Download Brochure
ModelDH-CA-DB480BP(-A)DH-CA-DB480BN(-A)
Camera
Image Sensor1/3" EXview HAD CCD II
Effective Pixels976(H) x582(V), 570K pixels976(H) x 494(V), 480K pixels
Horizontal ResolutionColor: 700TVL
Electronic Shutter1/50s~1/100,000s1/60s~1/100,000s
SynchronizationInternal
Min. Illumination0.05Lux@F1.4
S/N Ratio > 60dB
Video Output1Vp-p Composite Output (75Ω/BNC)
Camera Features
Max. IR LEDs Length20m, Smart IR
OSDEnglish, Chinese, French, German, Russian, Spanish, Portuguese, Japanese
Day/NightAuto(Electronic) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto Trace WB1 / Auto Trace WB2 / Manual / Auto
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Picture AdjustmentMirror / Brightness / Contrast / Sharpness / Hue / Gain
Lens
Focal Length4~9mm (2.8~12mm optional)
Focus ControlManual
Lens TypeManual / Auto iris
Mount TypeΦ14
General
Power SupplyDC12V±10% (-A model: DC12V/AC24V dual power supply)
Power ConsumptionMax 3W
Working Environment-30°C~+60°C / 20%~80%RH
Protection LevelIK10, IP66
DimensionsΦ160mm × 118.5mm
Weight980g (-A: 1000g)
