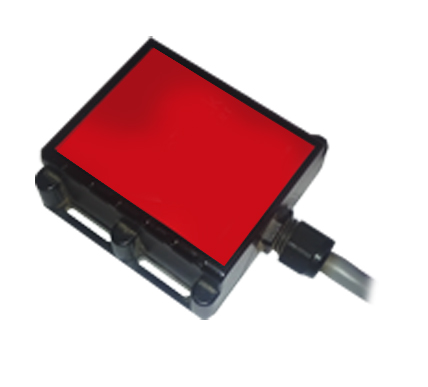

SVT12

Product Features:

  • Waterproof Housing (IP67)
  • Large Flash Memory (16MB)
  • To Store Records Up To 120 Days In Case Of Lost Connection Or In Roaming
  • Remote Logs Reading
  • For Remote Issue Solving With Manufacturer
  • Configurable Device Behavior
  • To Customize The Data Acquire & Sending For Different Application And GSM Costs Saving
  • Precise Online Tracking
  • Under Time, Distance And Corner Alteration
  • Integrated Scenarios:
    • Overspeeding To Secure Driver And Prevent Penalties
    • Authorized Driving (50 IButton Keys) To Prevent Stealing
    • Immobilizer
    • Integrated Back-up Battery

SVT-12 Is A Terminal With GPS And GSM Connectivity, Which Is Able To Determine The Object’s Coordinates And Transfer Them Via The GSM Network. This Device Is Perfectly Suitable For Applications, Which Need Location Acquirement Of Remote Objects. It Is Important To Mention That SVT-12 Has Additional Inputs And Outputs, Which Let You Control And Monitor Other Devices On Remote Objects. SVT-12 Also Has A USB Port For Device Status Log Output And Entering Configuration.

GSM Quad-band 900/1800 MHz; 850/1900 MHz
GPRS class 10 (up to 85,6 kbps);
SMS (text/data)
GPS NMEA, GGA, GGL, GSA, GSV, RMC, VTG protocol compatible
50 channel GPS receiver
-161 dBm sensitivity
INTERFACE 1 Digital Input Reserved for Ignition Status Monitoring
2 Digital Inputs
1 Analog Input (10V or 30V range)
2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
1-Wire® protocol
Power supply (+10...+30) V DC
2 Status LEDs
USB Port
Configuration and firmware upload (FOTA and via USB cable)
FEATURES Hermetic enclose IP67
Internal GSM antenna
Internal GPS antenna
GPS and I/O data acquisition
Real Time tracking
Smart data acquisition (based on time, distance, angle, ignition and events
Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
Smart algorithm of GPRS connections (GPRS traffic saving)
Operating in roaming networks (preferred GSM providers list)
Events on I/O detection and sending via GPRS or SMS
Scheduled 24 coordinates SMS sending
5 geofence zones (rectangular or circle)
Deep Sleep mode (less power consumption)
FOTA (firmware updating via GPRS)
Motion sensor
Small and easy to mount case
3 operational modes (Home, Roaming, Unknown) based on operator
Operation mode presets:

  • Advanced overspeeding detection
  • Driver identification (1-Wire iButton ID key)
