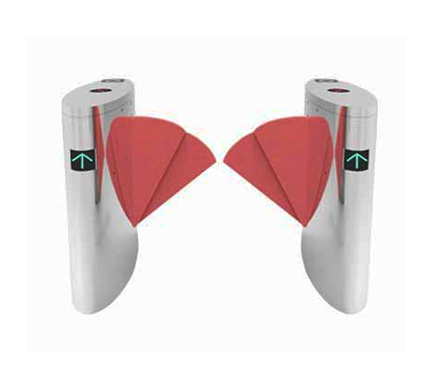

DH W86

Wing Gate Access Control Turnstile

Features:

  • One direction or bi-directional control
  • Can be integrated with most access control system
  • Flow direction guide
  • Anti-punch
  • Anti-panic
  • Normal close or normal open
  • Passable on power failure
  • Five pcs sensors on each casing
  • The lane is open for pass when authorized card is read
  • Close and open by remote control
  • Soft wing
Casing size: 1500*300*1000（MM）
Wing length：400mm
Max lane width: 900mm
Weight：140Kg
Casing material：SS (304#)
Power voltage：AC220±10% V50HZ
Drive motor：DC brush motor（24V)
Communication interface： RS485 ( standard)
Transit speed ：30-40 people/minute
Close and open time：0.6s
