Sanitunnel

Sanitize. Save yourself.. Save Nation

Overview

We take pride in Engineering Aluminium to various applications and solutions. Sagar Asia is one of India's leading Aluminium Downstream companies.

Suitable for

  • Hospitals, Malls and Hypermarkets, Vegetable markets, Parks and public places
  • Commercial Offices, IT Companies,Call centres, Government and Corporate Offices
  • Airports, Railway and Bus Stations,Sports Stadiums and Parking lots
  • Manufacturing, industries, Project Sites, Construction Site & Entrances

Why Sanitunnel ?

  • Anodised Aluminium Internal Frames with ACP Sheets or Optional Complete Anodized Aluminium Body makes the sanitunnel non corrosive, Lightweight & provides longer life span
  • Higher efficiency Pumps, Multimist nozzles and advanced plumbing systems makes Sanitunnel the most effective and advanced disinfection system
  • Because of Advanced Engineered design, Sanitunnel is easy to pack, transport friendly and is a tool free erection system
  • Aluminium is called a wonder metal, it is generally highly passive; it is light weight, yet strong, durable and robust. We have engineered the best proportions of Aluminium on to our products.

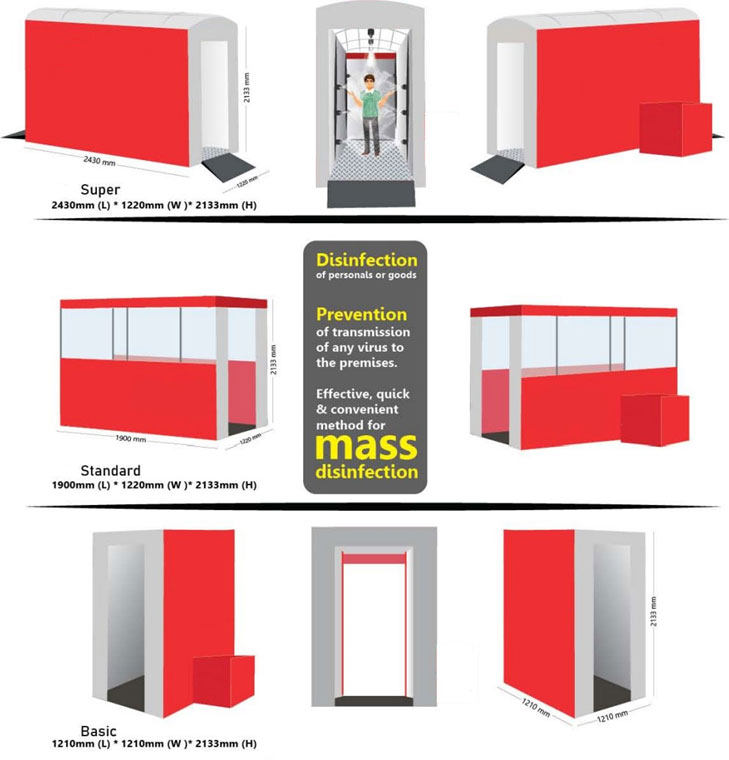

Model Name Basic Standard Super
Tunnel Dimensions (LxWxH) 1210mm * 1210mm * 2133mm 1900mm * 1220mm * 2133mm 2430mm * 1220mm * 2133mm
Tunnel Body Aluminium Composite Pannel & Alu chequered plate platfrom with disinfectant drain outlet. Aluminium Body With Composite Panel, Plexiglass & Birch Wood Platfrom with disinfectant drain outlet Aluminium Frame with Aluminium Anti Bacterial Composie Sheets & Aluminium chequered platfrom with disinfectant drain outlet.
Internal Tunnel Support Side Support Aluminum Frames Side Support Aluminum Frames Side Support Aluminum Frames
Body Design Compact & Light Weight Compact & Light Weight Tough Body For Industrial Use
Disinfectant Consumption per Hour on Continuous Running (Approx*) 20 - 25 LPH 20 - 25 LPH 20 - 25 LPH
Disinfection Rate Per Hour (Approx.) 600 (Appox) 720 (Appox) 720 (Appox)
Power Supply 220 VAC 1-Ø 50 Hz 220 VAC 1-Ø 50 Hz 220 VAC 1-Ø 50 Hz
Pump Type Diaphragm Pump 150 W, Amps 2.1 Diaphragm Pump 150 W, Amps 2.1 Single phase Self-Priming Monoset Pump providing jet flow of disinfectant to take care of flow requirement
Nozzle Type SS Cylindrical Spray Nozzle with ceramic filter for fine mist disinectant spraying during operation (Nozzle Discharge Size < 1 mm) SS Cylindrical Spray Nozzle with ceramic filter for fine mist disinectant spraying during operation (Nozzle Discharge Size < 1 mm) SS Cylindrical Spray Nozzle with ceramic filter for fine mist disinectant spraying during operation (Nozzle Discharge Size < 1 mm)
No of Nozzles 6 8 12
Mist Distribution Maximum Mist Distribution Including Feet Sanitization Maximum Mist Distribution Including Feet Sanitization Maximum Mist Distribution Including Feet Sanitization
Pump Hosting Outside Outside Internal / External Cabinet Provided
Tank Capacity 50 Ltrs 50 Ltrs 300 Ltrs 4 Layer
Operation Model Automatic / Manual - operated with the PLC Controllers Automatic / Manual - operated with the PLC Controllers Automatic / Manual - operated with the PLC Controllers
Electric Socket / Control Box IP 65 Electric control box with complete automation IP 65 Electric control box with complete automation IP 65 Electric control box with complete automation
LED Light Moist Proof LED Provided with 400 lux Moist Proof LED Provided with 400 lux Moist Proof LED Provided with 400 lux
Water Sediment Filter Included Included Included
Aluminium Ramp Optional Optional Included
Hand Sanitizer Station Included At The Entrance Included At The Entrance Included At The Entrance
Chemical Storage & Pump Hoisting Outside Outside Storage Tank & Pump are Concealed With The Tunnel in a Aluminium Box
Motion Sensor Switch Included Included Included
Warranty 1 Year Warranty Against Defects 1 Year Warranty Against Defects 1 Year Warranty Against Defects
Features

Designed to disinfecting personnel by passing through disinfectant tunnels, which sprays disinfectant and sanitizer to kill 99.99% of virus, bacteria, fungi | Available in Fully Automatic Or Manual Transmission Aluminium Body | No Need For Supervision High Pressure Sanitizing Excellent Coverage | Aluminium Ramp/Aluminium Roofing

Additional Optional Features Available At Extra Cost

Thermal Scanners Advanced High Pressure Fogging Special Customized Tunnels To Meet User Requirements Automatic Hand Sanitizer Option Available Complete Aluminium Body Tunnels Available Tanks Can be Upgraded to 100 Ltr, 500 Ltr At Additional Cost Technician Visit Can Be Arranged At An Extra Cost Aluminium Ramp / Aluminium Roof To Drain Out Rain Water

Terms & Conditions

Installation & Shipping Extra Kindly Use RO / Filter Water / Drinking Water Multiple users can use at same time while maintaining safe distance of 6 feet | No wetting of dothes. Just a light damp which will evaporate in few minutes Disinfectant Sold Separately - We Suggest To Use Disinfectant which is suggested and approved by WHO / FDA / ICMR/IMA

Suggested: Nano Silver Particles, Ayur Certified Liquid Sanitizing Disinfectant, FROM CERTIFIED / REGULATED SOURCES ONLY Chemical/Disinfectant Consumption is an approximation based on live Internal tests.

Engineered to optimize the chemical consumption to provide the lowest total cost of ownership One year Warranty applicable on manufacturing defects.

Operational & Maintenance Manual along with a Installation Guide is included | Video Installation Available On Request.
