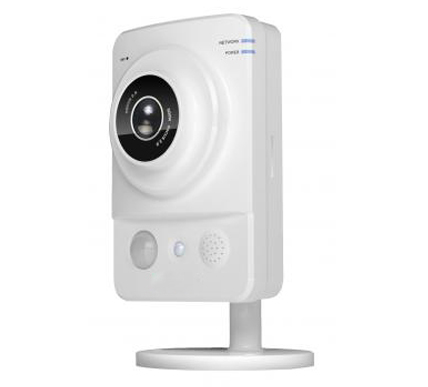

IPC K100

  • 1/3” 1.3Megapixel Aptina CMOS
  • H.264 & MJPEG Dual-stream Encoding
  • Max 15fps@1.3M (1280×960)/25/30fps@720P(1280×720)
  • DWDR, Day/Night, 2DNR, Auto Iris, AWB, AGC, BLC
  • Multiple Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm Fixed Lens
  • White LEDs Length 10m
  • PIR Sensor Range 6m
  • Micro SD Memory (K100A&K100W Only), PoE (K100&K100A Only), Wi-Fi (K100W Only)
Download Brochure
ModelDH-IPC-K100DH-IPC-K100ADH-IPC-K100W
Camera
Image Sensor1/3” 1.3Megapixel Aptina CMOS
Effective Pixels1280(H)x960(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3~1/10000 (PAL)
Auto/Manual 1/4~1/10000(NTSC)
Min. Illumination0.1lux/F1.8(color),
S/N Ratio>50dB
Camera Features
Max. IR LEDs Length10m
Day/NightAuto(Electronic) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Lens
Focal Length3.6mm
Max ApertureF1.8
Angle of View70°
Mount TypeBoard-in Type
Video
CompressionH.264/MJPEG
Resolution1.3M(1280x960)/720P(1280x720)/D1/CIF
Frame RateMain Stream1.3M(1~15fps)/720P/D1(1~25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 8096Kbps,MJPEG:32K~12288Kbps
Audio
CompressionN/AG.711a / G.711u (64kbps)/ PCM(128kbps)
ResolutionN/ABuilt-in Mic, Built-in speaker
Network
EthernetRJ-45 (10/100Base-T)RJ-45(10/100Base-T) / Wi-Fi(802.11b/g)
ProtocolIPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Ver. 2.0
Max. User Access10 Users
SmartphoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotN/AMicro SD, Max 32GB
PIR Sensor RangeUp to 6m
AlarmN/A1/1 channel In/Out
General
Power SupplyDC12V,PoE(802.3af)DC12V
Power Consumption<4W
Working Environment-10°C~+50°C, 10%~90%
Dimensions66.6×43mm×131.2
Weight0.35kg (0.4kg with bracket)
