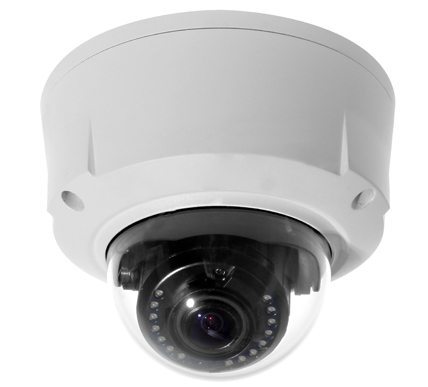

IPC HDBW3101

  • 1/3” 1.3Megapixel Progressive Scan Aptina CMOS
  • H.264 & MJPEG Dual-stream Encoding
  • 25/30fps@1.3M(1280×960)&25/30fps@720P(1280×720)
  • WDR, Day/Night(ICR), 2DNR, Auto Iris, AWB, AGC, BLC
  • Multiple Network Monitoring: Web Viewer, CMS(DSS/PSS) & DMSS
  • 2.8~12mm Varifocal Lens
  • Built-in 1/1 Alarm In/out
  • IR LEDs Length 20m
  • Micro SD Memory, IP66, IK10, PoE
Download Brochure
ModelDH-IPC-HDBW3101PDH-IPC-HDBW3101N
Camera
Image Sensor1/3” 1.3Megapixel Aptina CMOS
Effective Pixels1280(H)x960(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3~1/10000Auto/Manual 1/4~1/10000
Min. Illumination0.1lux/F1.4(color),0.005Lux/F1.4(B/W),0Lux(IR on)
S/N Ratio>50dB
Video Output1 channel BNC(1.0Vp-p, 75?)
Camera Features
Max. IR LEDs Length20m
Day/NightAuto(ICR)/Color/B/W
Backlight CompensationOff/BLC/HLC/WDR(128dB)
White BalanceAuto
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Lens
Focal Length2.8~12mm
Max ApertureF1.4
Focus ControlManual
Angle of ViewH: 92°(Wide)~27.2°(Tele)
Lens TypeManual/Auto Iris (DC)
Mount TypeBoard-in Type
Video
CompressionH.264 / MJPEG
Resolution1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288)1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Frame RateMain Stream1.3M/720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Audio
CompressionG.711a / G.711u (64kbps)/ PCM(128kbps)
Resolution1/1 channel In/Out
Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Ver. 2.0
Max. User Access10 Users
SmartphoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD, Max 32GB
Alarm1/1 channel In/Out
General
Power SupplyDC12V/AC24V, PoE(802.3af)
Power Consumption<8W
Working Environment-10°C~+60°C, 10%~90%
Ingress ProtectionIK10 & IP66
DimensionsΦ151x119mm
Weight1.05kg
