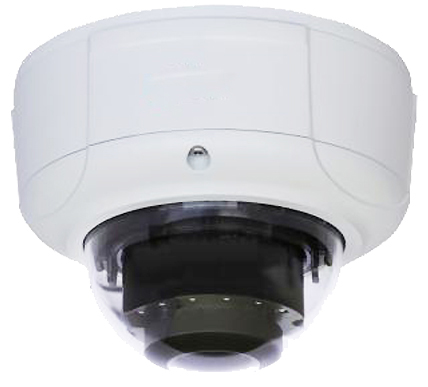

CA DBW481B

  • 1/3" SONY EXview HAD CCD II & Effio-E DSP
  • Resolution Of 700TVL(Color), 750TVL(B/W)
  • DWDR, Day/Night(ICR), 2DNR, Auto Iris, AWB, AGC,BLC, MD, Privacy Masking, Picture Adjustment
  • 2.8~12mm Varifocal Lens
  • Max. IR LEDs Length 20m, Smart IR
  • OSD, DC12V(-A Model: DC12V/AC24V Dual Power Supply)
Download Brochure
ModelDH-CA-DBW481BP(-A)DH-CA-DBW481BN(-A)
Camera
Image Sensor1/3" SONY EXview HAD CCD ?
Effective Pixels976(H) x582(V), 570K pixels976(H) x 494(V), 480K pixels
Horizontal ResolutionColor: 700TVL, B/W: 750TVL
Electronic Shutter1/50s~1/100,000s1/60s~1/100,000s
SynchronizationInternal
Min. Illumination0.005Lux@F1.4 (0Lux IR LED On)
S/N Ratio > 60dB
Video Output1Vp-p Composite Output (75Ω/BNC)
Camera Features
Max. IR LEDs Length20m, Smart IR
OSDEnglish, Chinese, French, German, Russian, Spanish, Portuguese, Japanese
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto Trace WB1 / Auto Trace WB2 / Manual / Auto
Gain ControlAuto / Manual
Noise Reduction2D
Privacy MaskingUp to 4 areas
Picture AdjustmentMirror / Brightness / Contrast / Sharpness / Hue / Gain
Lens
Focal Length2.8~12mm
Focus ControlManual
Lens TypeManual / Auto iris
Mount TypeΦ14
General
Power SupplyDC12V±10% (-A model: DC12V/AC24V dual power supply)
Power ConsumptionMax 4W
Working Environment-30°C~+60°C / 20%~80%RH
DimensionsΦ160mm × 118.5mm
Weight980g (-A: 1000g)
